Modern & Contemporary Granny Flats: 6 Inspiring Design Ideas

What do modern granny flat designs look like in 2026? Clean lines, flat or skillion roofs, large windows and a simple palette of render, timber and metal. Skillion roofs can trigger extra height and overshadowing checks with council, so the six concepts below balance street appeal with compliance.

A contemporary exterior can use a simple roof, a limited cladding palette and carefully placed openings. Start with the occupant and the site. A shaded courtyard may be more useful than a large glass wall facing the neighbouring house.

The six concepts below are design starting points, not approved plans or a promise of construction cost. Use them to brief a designer, then test height, overlooking, drainage and energy performance before selecting finishes.

Table of Contents

• The 4 Key Features of a Modern Granny Flat
• 6 Inspiring Modern Granny Flat Design Concepts
  • Concept 1: The Minimalist Box
  • Concept 2: The Angular Dynamic
  • Concept 3: The Glass Pavilion
  • Concept 4: The Material Contrast
  • Concept 5: The Floating Box
  • Concept 6: The Courtyard Design
• Key Materials in Modern Design
• Technology the occupant can use
• Common Mistakes to Avoid
• Frequently Asked Questions
• Turn a concept into a brief

The 4 Key Features of Modern Granny Flat Designs

Achieving a high-end contemporary look comes down to focusing on four essential design elements.

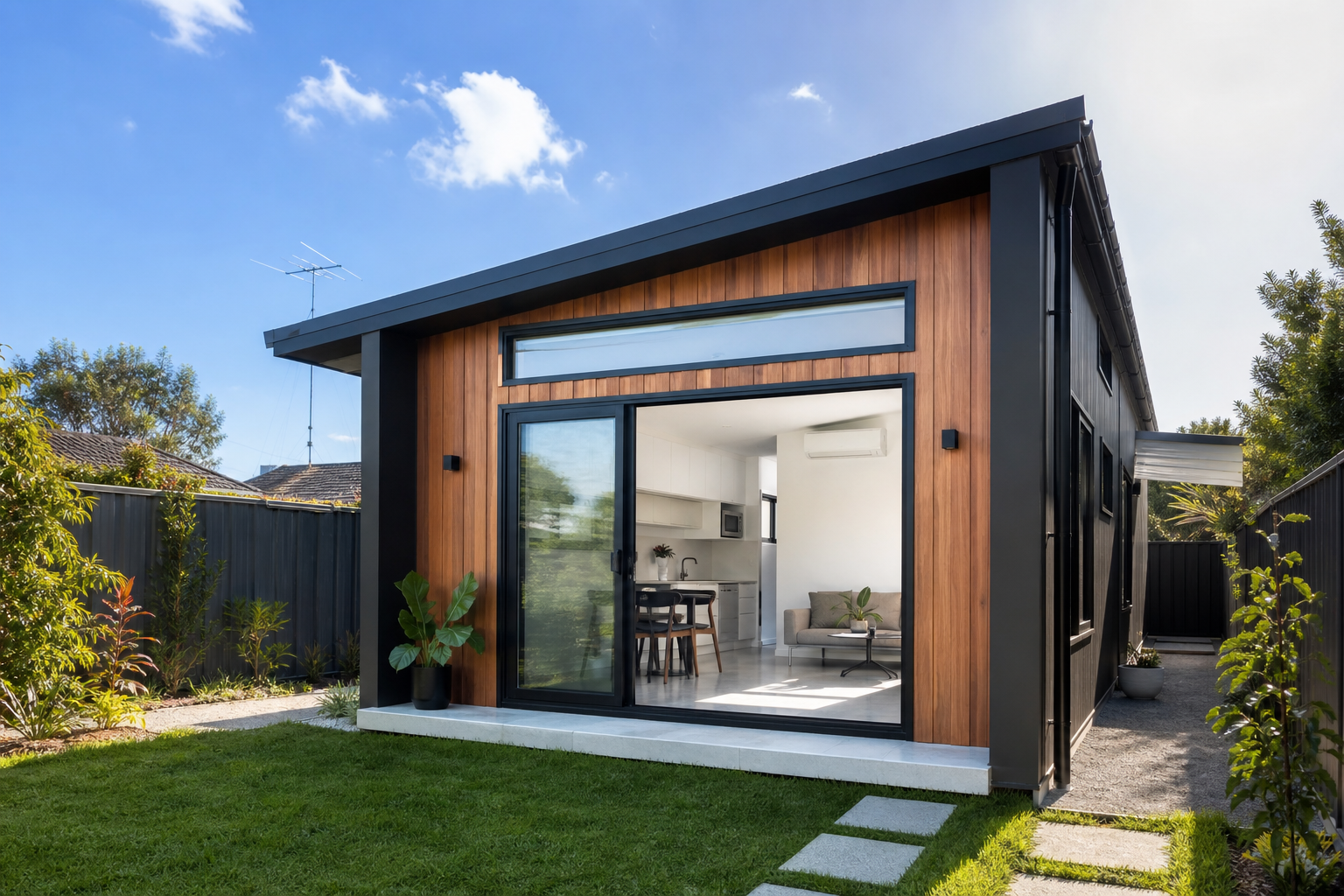

1. Dramatic Rooflines (The Skillion Roof)

A skillion roof has one sloping plane. Its pitch, high point and ceiling arrangement need to be drawn together. Ask the designer to show the building height at the relevant measurement points and where rainwater will discharge.

2. A Bold, Simple Material Palette

Try one primary cladding material and one accent. Compare samples outdoors and ask about the specified finish, maintenance and suitability for the exposure at your site. A dark render image doesn’t show how the material will weather.

3. Emphasis on Natural Light & Indoor-Outdoor Flow

Choose windows for daylight, outlook, privacy and thermal performance together. Large glazing is optional. A smaller, shaded opening can be a better choice than a full-height window that needs its blind closed all afternoon.

4. Clean Lines and Minimalist Details

Draw the junctions between roof, wall and window before ordering materials. Concealed gutters and minimal frames need workable drainage and maintenance access. Ask to see those details rather than judging the design only from its front elevation.

6 Inspiring Modern & Contemporary Granny Flat Design Concepts

Each of these modern granny flat designs demonstrates a different approach to contemporary architecture.

Concept 1: The Minimalist Box

One pure, geometric form with a single skillion roof plane. Large windows and minimal detailing keep the focus on form and light.

Pros

• A straightforward shape to compare across supplier quotes.
• Creates a bold, clear architectural statement.

Cons

• Can look severe if not softened with landscaping or timber accents.

Best For

Minimalist living or properties with contemporary main houses.

Concept 2: The Angular Dynamic

The layout uses multiple skillion roof planes at different angles to create visual interest and drama, resulting in interesting interior spaces with varying ceiling heights.

Pros

• Creates a highly unique and visually striking building.
• Allows for complex interior volumes and light play.

Cons

• More complex and expensive to design and build.

Best For

Creating maximum visual impact or on sites with interesting topography.

Concept 3: The Glass Pavilion

Floor-to-ceiling glazing and minimal frames pull the garden into the room. Privacy and summer heat still need planning, or the pavilion becomes a glass oven.

Pros

• A broad garden outlook where privacy and shading permit.
• Makes the granny flat feel much larger than its footprint.

Cons

• Can be expensive due to the cost of high-performance glass.
• Requires careful orientation to manage heat gain and privacy.

Best For

Properties with beautiful views or lush gardens.

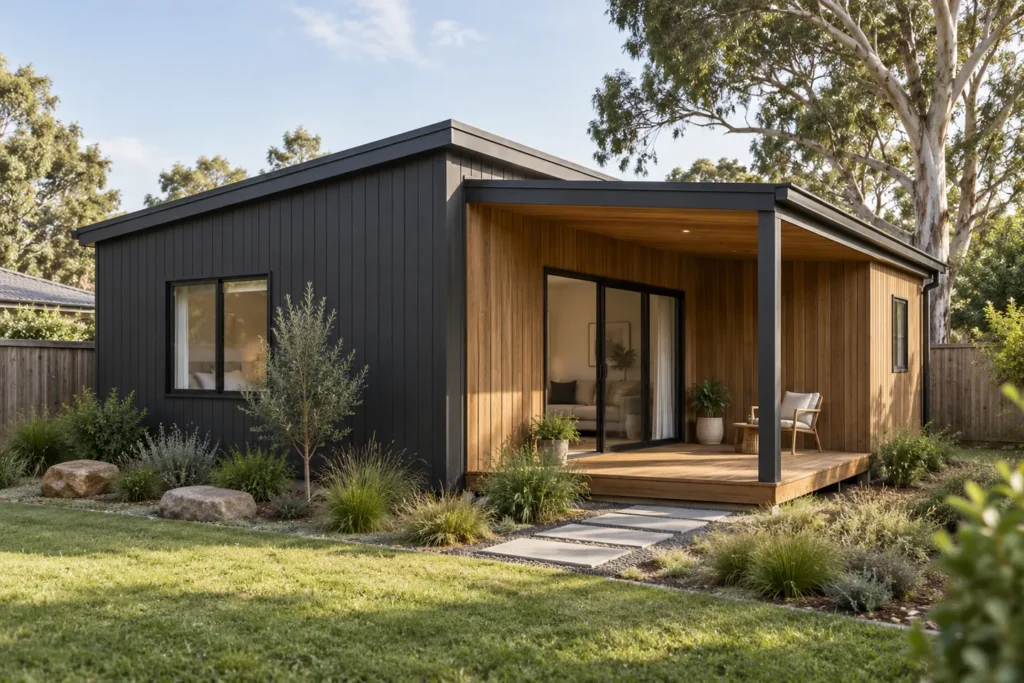

Concept 4: The Material Contrast

Material contrast is the point: dark steel cladding, natural timber and glass. The palette is the design, not an extra layer of decoration.

Pros

• Creates rich texture and visual interest.
• Allows for a unique look even with a simple building form.

Cons

• Can become “busy” if too many materials are used.
• Relies on quality materials and craftsmanship.

Best For

Creating a high-end, custom look.

Concept 5: The Floating Box

An elevated floor can change how the building meets a slope. Have the foundation, bracing, access and underfloor space designed for the actual soil and exposure. Don’t select it solely to avoid the cost of a slab.

Pros

• An elevated foundation option to compare with excavation and retaining.
• Any proposed space underneath needs its own clearance, drainage and approval checks.

Cons

• Requires more engineering and can be more expensive on flat sites.
• Accessibility needs to be considered (stairs or ramps).

Best For

Sites where an engineer and planning assessment support an elevated design. Elevation alone does not make a flood-affected property suitable.

Concept 6: The Courtyard Design

This U-shaped or L-shaped layout wraps around a central courtyard, creating a private outdoor space that becomes an integral part of the home.

Pros

• Creates a private, sheltered outdoor area.
• Allows light and air to penetrate deep into the floor plan.

Cons:

• Less efficient use of the building footprint.
• More complex and expensive to build than a simple rectangle.

Best for: Creating privacy in dense urban areas or on smaller blocks.

Key Materials in Modern Design

Modern cladding is a short list done well: steel, timber, glass. Mixing six finishes is how the look turns messy.

• Cladding: Dark-coloured steel like Colorbond® Monument or Basalt is a popular choice for its clean lines and durability. This is commonly contrasted with the warmth of natural timber cladding (like cedar or blackbutt) on feature walls.
• Roofing: A skillion roof made from Colorbond® steel is the quintessential feature of modern Australian granny flat designs.
• Windows: Large, powder-coated aluminium window frames in a dark colour (like black or Monument) create a bold contrast against light walls and maximise the glass area.
• Flooring: Polished concrete is a hallmark of modern interiors, offering a durable, minimalist finish that flows smoothly from inside to out.

Technology the occupant can use

Choose controls around the person living in the flat. App-controlled lights are unhelpful if the occupant cannot operate them without another household member’s phone. Keep normal wall switches and straightforward manual operation where possible.

Ask how access codes, accounts and Wi-Fi will be transferred if a tenant moves out. Write down which equipment belongs to the property and which services require subscriptions. Check compatibility before specifying a device: a product sold overseas may not suit the local door hardware, electrical system or support arrangements.

For blinds and heating, agree the useful function first. Timed shading, a reachable control and a clear temperature display may solve the problem without a whole-home automation package. Technology is an optional specification item, not proof that a dwelling is modern or energy efficient. Put it on the quote as a separate line so you can compare the cost with spending on insulation, shading or storage.

Test the design in its actual position

Use a site plan with north marked, neighbouring windows, existing trees and the main home’s living spaces. A design that opens onto a private garden in a brochure may face a driveway on your block. Check the view from both dwellings and the route visitors will take.

Your Home’s orientation guidance distinguishes climate and site priorities. There isn’t one instruction to put every large window and the high side of every roof north. Have the designer consider shading, heat gain, ventilation and local climate together.

Test the furniture as well as the facade. Mark the sofa, dining chairs and storage doors at scale, and leave room to use them. If a courtyard removes too much indoor space, compare a simpler rectangle with a sheltered outdoor area. That is a design trade-off to resolve on drawings, not a reason to force the original concept onto the site.

Frequently Asked Questions

Turn a concept into a useful brief

Choose the concept that solves your site’s main problem: privacy, access, daylight or a workable footprint. Take two alternatives to the designer and ask what each changes in the approval drawings, construction details and quote. Keep the preferred materials separate from the essential requirements so you can revise finishes without losing the purpose of the plan.

For example, a courtyard concept might protect a bedroom from the main house’s view but add wall length and reduce the living room. An elevated concept might reduce one kind of ground work while adding stairs and bracing. Ask for those trade-offs to be shown, not hidden behind the render.

Continue with interior planning and one-bedroom layouts. For window decisions, consult Your Home’s glazing guidance alongside the project’s energy assessment.

By The Granny Flat Guide Team. Last updated October 2026.
