Granny Flat Design Principles Australia: Orientation, Access and Privacy
Good granny flat design makes a small home comfortable to use every day. Start with orientation, privacy, furniture and storage, then test the kitchen, bathroom and walking routes on a measured plan.
Pair this with designs and floor plans, cost breakdown, and state rules on the rules by state hub.
Orientation and passive comfort
Start with your climate and the actual site. Your Home orientation guidance explains how sun, shade and breezes inform the design. A north-facing living room can help in a heating climate, but it isn’t a universal answer for every Australian location.
| Principle | Why it matters | Design move |
|---|---|---|
| Living spaces to north | Winter sun, easier shading in summer | Put bedroom or service rooms on south or west where possible |
| Limit west glass | Hot afternoon load in most capitals | Smaller windows, external blinds or eaves |
| Cross-ventilation | Can support natural cooling when conditions suit | Openings on opposite walls; operable windows |
| Roof colour and insulation | Coordinate with the climate-specific assessment | Light roof in hot climates; high ceiling R-values |
If the only legal pad is on the southern boundary, you can still design well: raise sill heights for privacy, use clerestory light, and spend the glazing budget on the best available elevation rather than every wall. In Brisbane or Perth, plan for external clothes drying and shaded outdoor seating so occupants aren’t forced indoors with air conditioning all afternoon.
Accessibility without “institutional” look
Many granny flats house older relatives. You don’t need full NDIS Specialist Disability Accommodation specification for every project, but early choices are cheap and later retrofits aren’t:
- Level or gently ramped path from street or main house to the entry
- Door clear openings that take a mobility aid (wider than a standard internal door where budget allows)
- Bathroom with hobless shower, grab-rail blocking, and space to turn
- Switches and power points at reachable heights
- One bedroom and living on the same level (avoid split levels in small plans)
Check ABCB guidance and your state’s adaptable housing notes where relevant. Family funding arrangements that pay for accessible features should sit in a written deal. See ATO granny flat agreement explained.
Privacy: two households, one lot
Privacy fails when the flat’s living room stares into the main kitchen, or when both front doors share a single pinch point. So design for:
- Separate entries with distinct paths where the lot allows
- Offset windows so sightlines miss living rooms
- Privacy and sound control (offset sightlines and seek acoustic advice where needed) even when setbacks are tight
- Outdoor space for the flat that isn’t the main house’s BBQ zone
Attached secondary dwellings need extra care on shared walls and fire separation. Compare options in attached granny flat and two-storey granny flat.
Layout principles that survive council rules
Once the furniture layout works, test it against the site constraints. A window moved to avoid overlooking may change daylight and ventilation elsewhere. Review those effects together rather than treating the setback drawing and interior plan as unrelated documents.
Before you fall in love with a 60 m² open-plan kit:
- Confirm maximum floor area for your pathway (e.g. NSW CDC secondary dwelling caps on many lots)
- Map private open space and parking requirements for your LGA
- Keep wet areas stacked for efficient plumbing runs
- Place the kitchen where services and exhaust can exit cleanly
Approval context: approval guide and regulations by state. Browse ideas on designs and ideas.
Budget and design trade-offs
Price design alternatives while changes are still on paper. Ask which option changes the structure, foundations, glazing or service runs, and compare the resulting scope. Our cost breakdown helps keep those tasks visible without assuming that every privacy or orientation change is inexpensive.
Frequently Asked Questions
Should every granny flat face north?
Not if the only compliant pad faces south. Prioritise the best elevation you can get, then manage glass and shading.
Do accessible bathrooms cost much more?
Ask the designer to price the accessible layout at concept stage. Costs depend on the floor system, drainage and available space; don’t assume a level shower is a minor change to every plan.
How do I keep rental guests private from family?
Separate path, offset living windows, and a clear outdoor pocket for the flat. Written house rules help for family occupancy; leases apply for tenants.
Where can I compare floor plans?
One-bedroom designs compared and our prefab directory.
Disclaimer: The Granny Flat Guide Team publishes design research for Australian homeowners. This isn’t architectural or planning advice for your lot.
Sources: Australian Building Codes Board · State planning portals linked from rules by state
By The Granny Flat Guide Team
How much does council approval add to your build budget?
Council and certifier fees sit outside the builder quote. In NSW, a CDC pathway through a private certifier often lands between roughly $3,000 and $8,000 once survey, BASIX and Sydney Water checks are included, while a full DA can cost more because of longer consultant time and holding costs. Victoria and Queensland use different fee schedules, so treat any single number as a starting point. Model your own project in our cost calculator, then browse the supplier hub or send us an enquiry when your footprint is settled.
What design choices affect approval speed?
Setbacks, height, floor area and tree protection overlays decide whether you stay on a fast CDC track or drop to a slower DA. Staying under common 60 sqm internal caps, keeping adequate side and rear setbacks and connecting services without major easement conflicts usually keeps the pathway simpler. If your block is sloped, flood-affected or heritage-listed, expect extra reports before council or your certifier can sign off. Use the setback checker and approval wizard against your address before you pay for custom drawings.

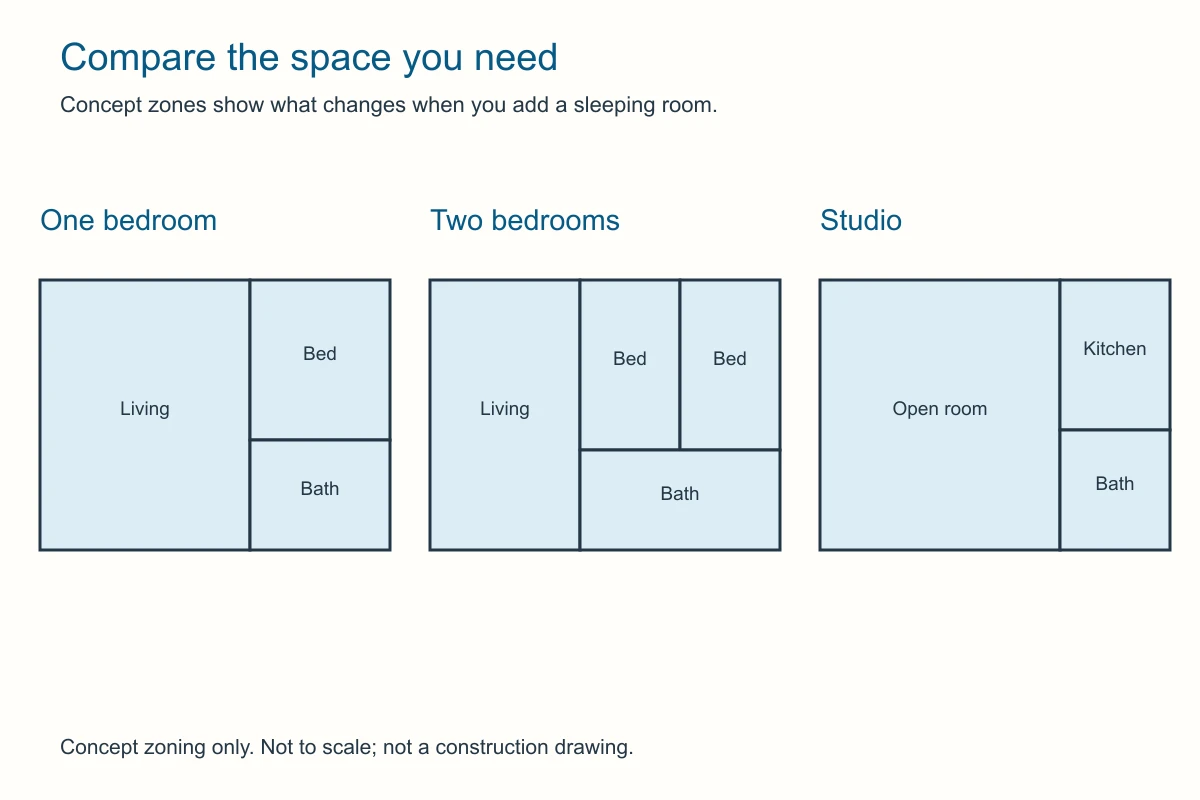

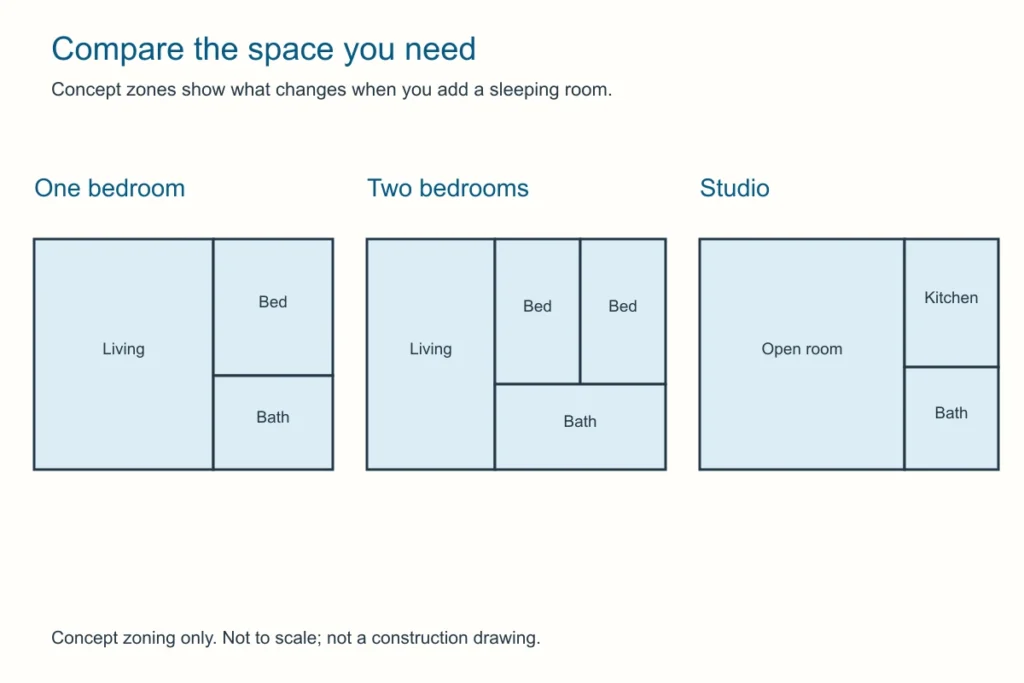

Which floor plan size suits a one-bedroom secondary dwelling?
One-bedroom layouts commonly land between 45 sqm and 60 sqm internal depending on whether you include a separate laundry, study nook or larger bathroom. Smaller footprints reduce slab and roofing cost but can feel tight if you plan to rent long term. Compare real project numbers in our Australia-wide cost guide and browse design ideas before you lock a supplier package.
